Guitar archtop Curly Maple Back and Sides No. 1109, AA Grade

185.00€

Weight: 5 kg

Wood Cut In Year: 2024

In Stock!

Guitar archtop Curly Maple Back and Sides No. 1109, AA Grade quantity

Add to cart Ask Anything About this Product!

Aditional Information

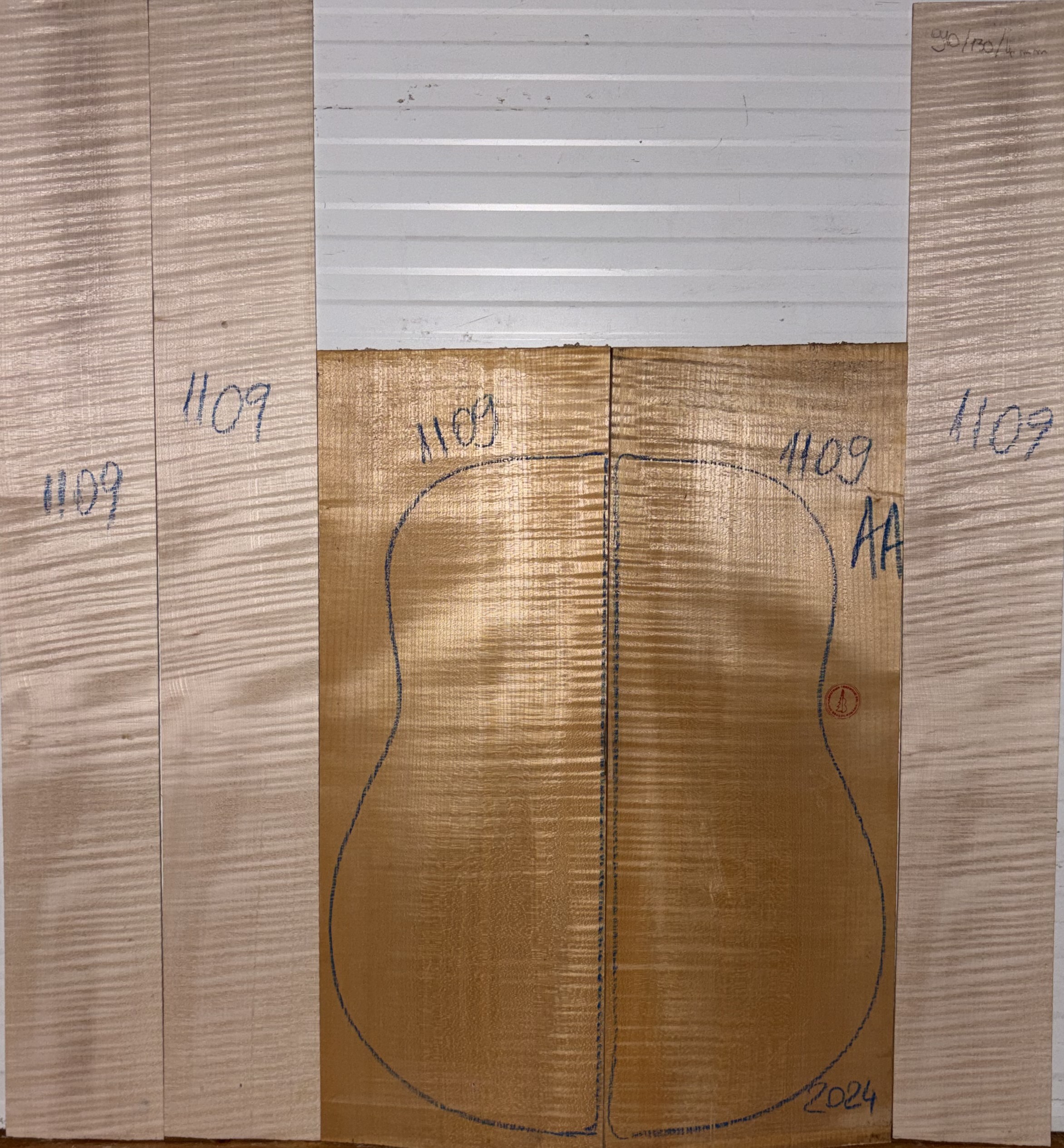

Please check the second image to see the end grain of the back.

This set can be used for a 17 inches archtop guitar.

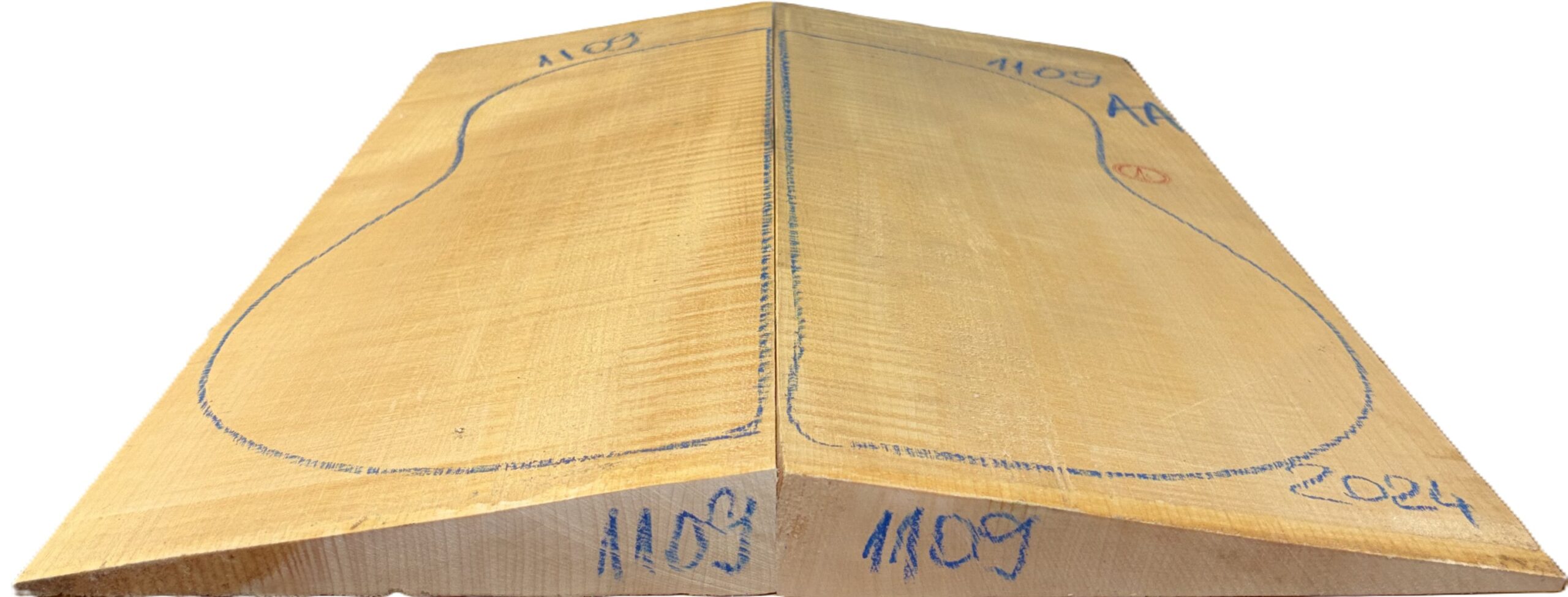

The back is composed of two bookmatched, quartersawn halves. Each half is minimum 23″ x 9″ (600 mm x 230 mm) and tapers from approximately 0.43″ to 1.25″ at the joint edge (11 mm to 35 mm) thickness.

The sides are each one 35″x 4”x 0,15″ ( 890 x 110 x 4 mm )

Botanical name: Acer pseudoplatanus

Common name: Curly maple, fiddleback maple, tiger maple, flamed maple, rippled maple

Average Dried Weight: 38 lbs/ft³(615 kg/m³)

Specific Gravity (Basic, 12% MC):.48, .62

Janka Hardness: 1,050 lb_f (4,680 N)

Modulus of Rupture: 14,220 lb_f/in²(98.1 MPa)

Elastic Modulus: 1,438,000 lb_f/in²(9.92 GPa)

Crushing Strength: 7,980 lb_f/in²(55.0 MPa)

Shrinkage: Radial: 4.5%, Tangential: 7.8%,

Volumetric: 12.3%, T/R Ratio: 1.7

Harvested in Carpathian Mountains
